Wetted Perimeter Of Trapezoid. For the perimeter, pythagoras’ theorem is applied giving the perimeter, p, as: You will learn how to solve 3 hydraulic radius example problems for rectangle and trapezoid channels and also circular pipes that are only partially full.hyd.

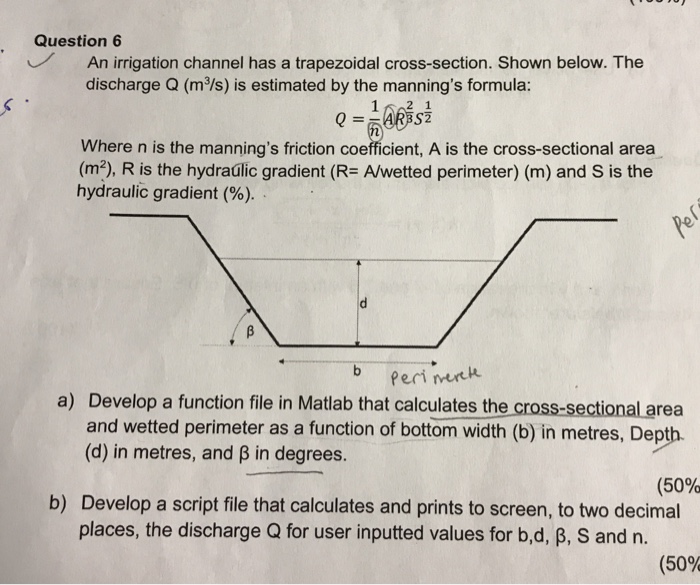

Solved An Irrigation Channel Has A Trapezoidal Crosssect from www.chegg.com
Manning formula uniform trapezoidal channel flow at given slope and depth For y = 3.13 ft, the specific force (m) value is 103.1 ft3. From existing topographical maps, you may need to calculate the area of a watershed.
The Wetted Perimeter Is Equal To B And The Lengths Of Two Sloped Sides Of The Channel.
You will learn how to solve 3 hydraulic radius example problems for rectangle and trapezoid channels and also circular pipes that are only partially full.hyd. Wetted perimeter of trapezoidal channel section solution step 1: The wetted perimeter of a stream, defined as the width of the streambed and stream banks in contact with water for an individual cross section, is used as a measure of the availability of aquatic habitat over a range of discharges (annear and conder, 1984;
Free Online Manning Formula Trapezoidal Channel Calculator >> Drop Your Fears At The Door;
Then, a = by + y²z. Two sides of a trapezium are parallel. Learn its definition along with types, properties, shape, the formula for area and perimeter and examples at byju's.
33 Rows Wetted Perimeter Of A Trapezoid.
S = slope of channel bottom or water surface [l/l]. It can be seen from the diagram that b = b + 2zy, so the trapezoid area can be expressed in terms y, b, and z: Trapezoid angle of 50°, and a slope angle of 0.4°.
Convert Result To Output's Unit
The wetted perimeter can be expressed as: 10.5, trapezoidal rule, geometric method giving good. 36 optimal cross section monday, november 5, 2012.
Enjoy The Free Libre Hawsedc Autocad Tools Too.
A = (y/2)(b + b + 2zy) simplifying gives: A = by + zy 2. The wetted perimeter for trapezoidal formula is defined as amount of surface touching the water in the trapezoidal channel and is represented as p = b+2*d* (sqrt(so*so+1)) or wetted_perimeter = width of section+2*depth of flow* (sqrt(channel slope*channel slope+1)).
